Introduction

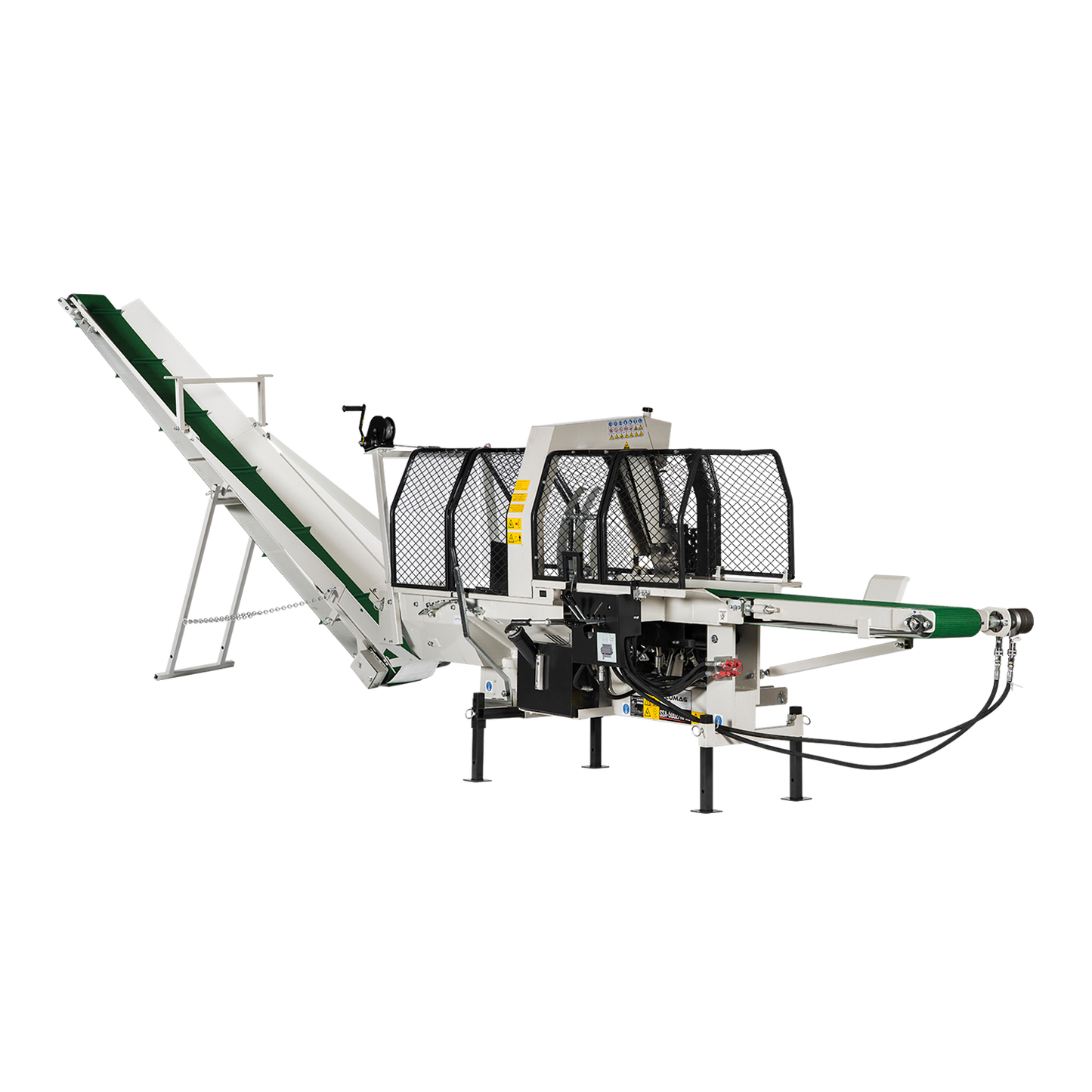

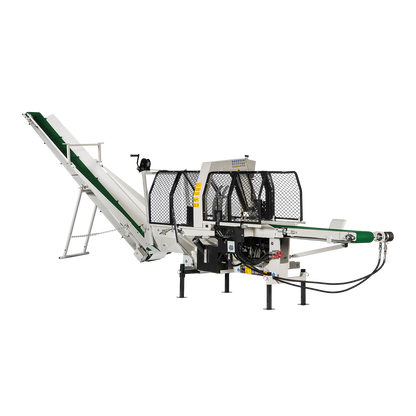

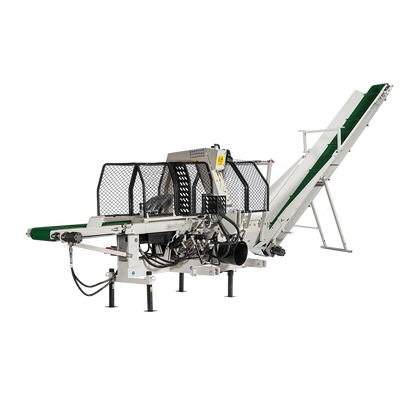

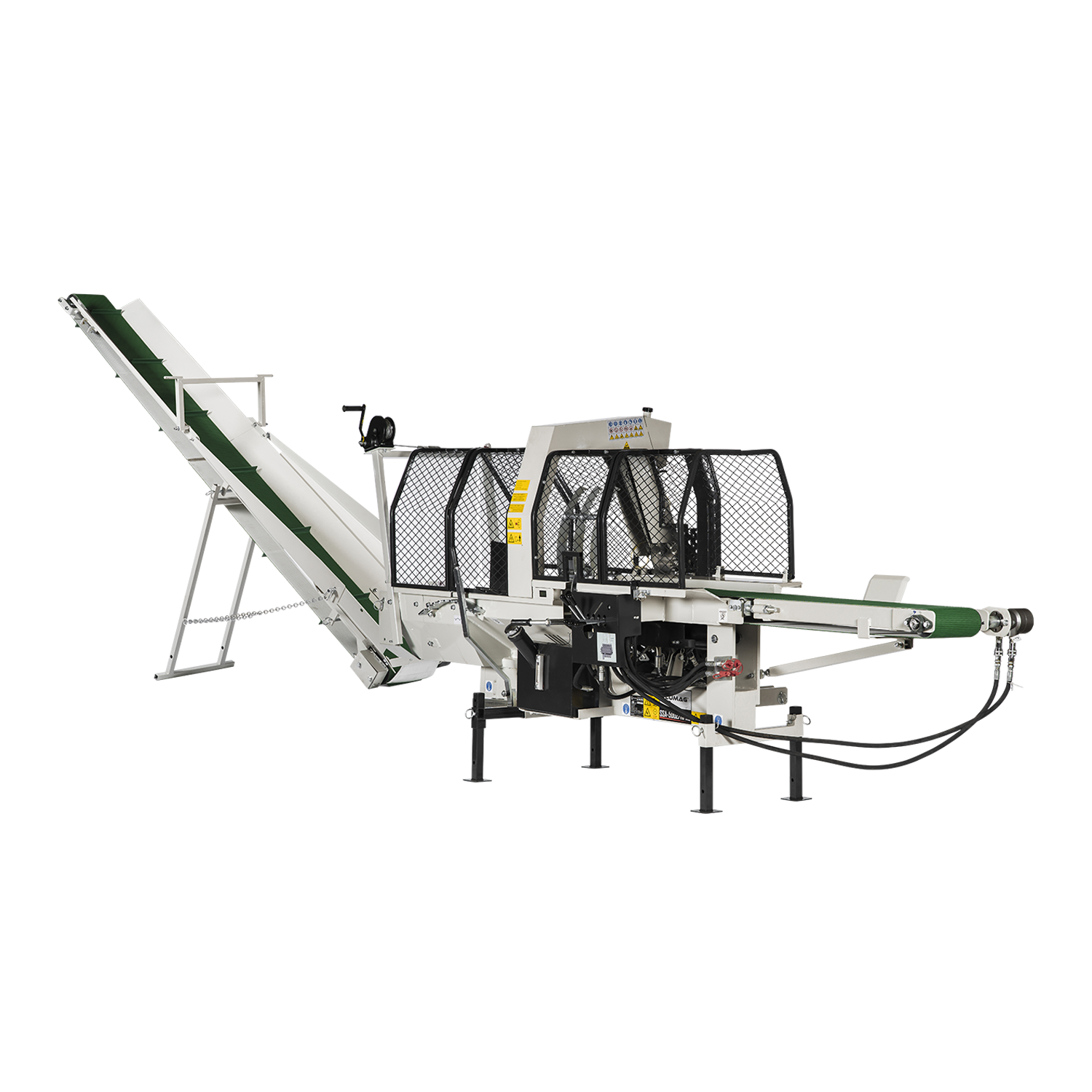

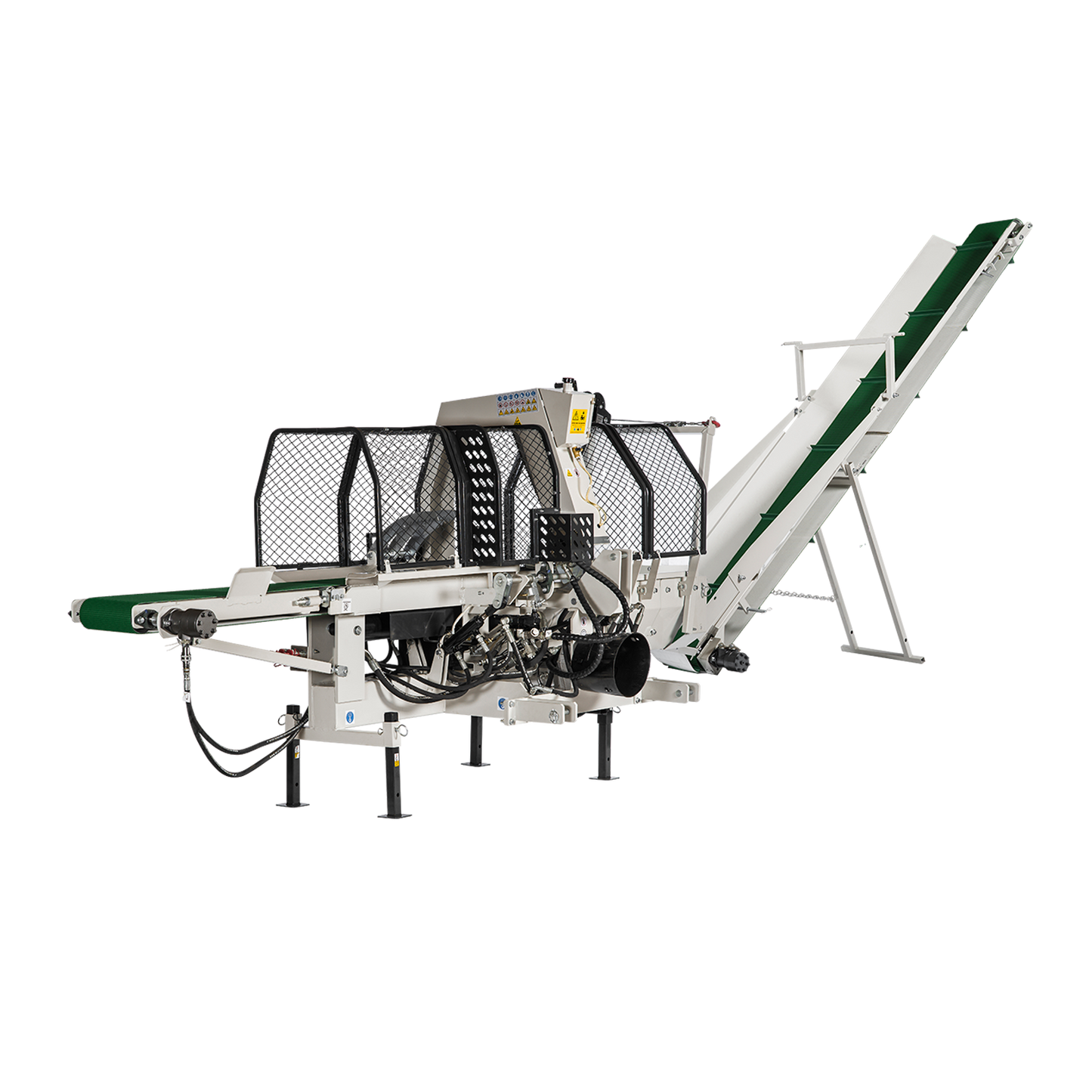

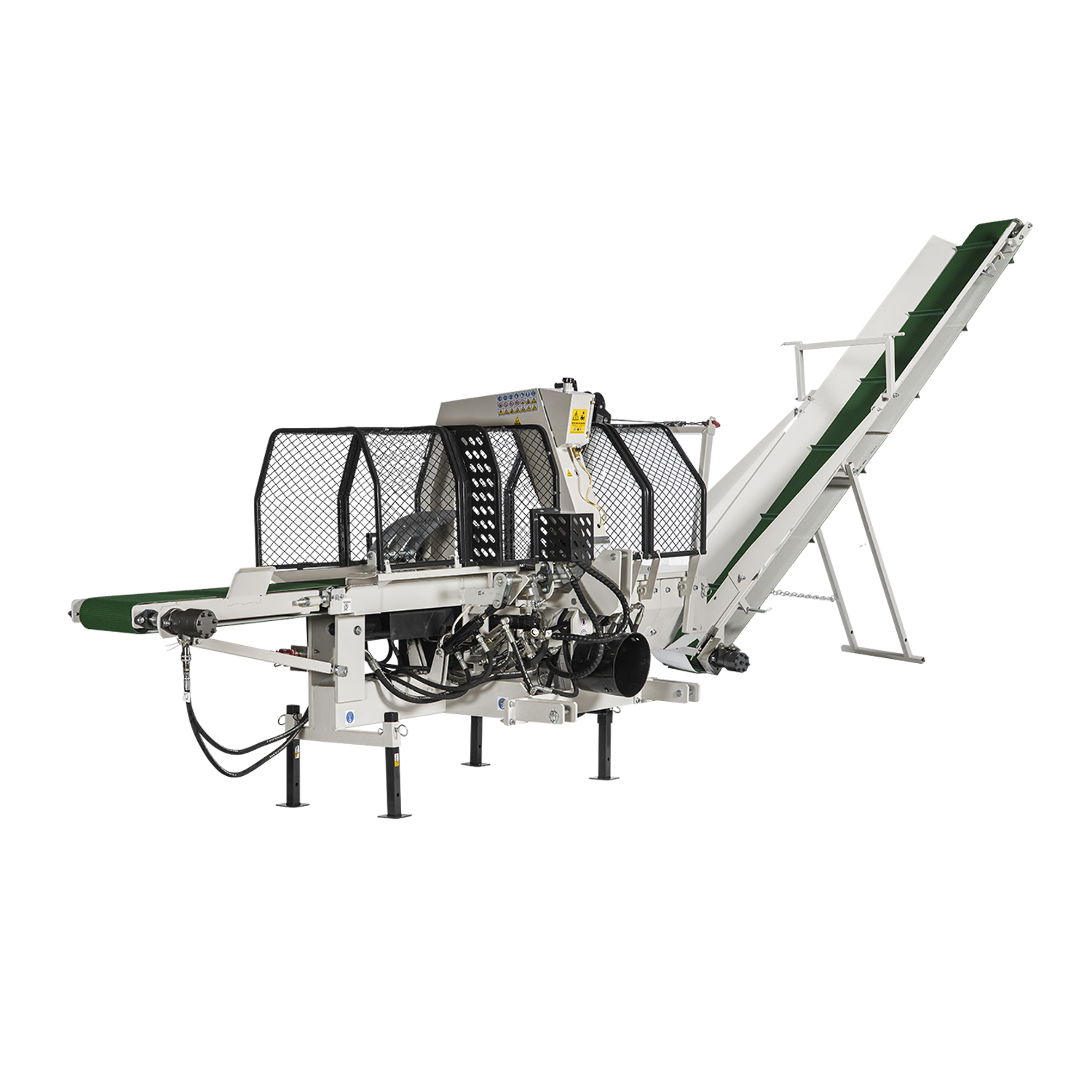

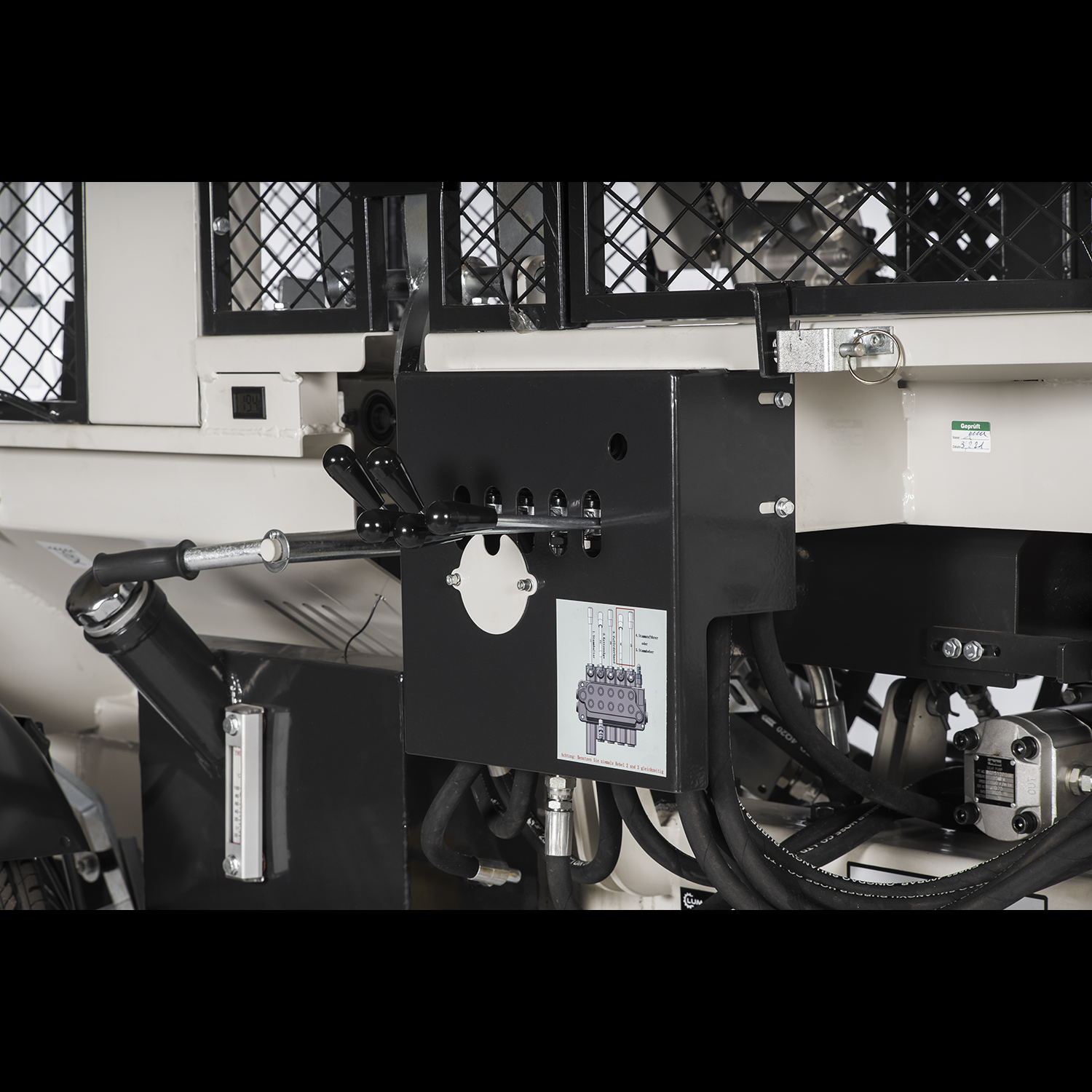

The Wontide hydraulic PTO automatic wood processor offers simple and easy operation for processing logs by sawing and splitting in one pass. Automatic material removal by belt conveyor and hydraulic chainsaw and log holder operation allow even more fatigue-free work. The integrated hydraulic feeder belt supplies the saw log machine with material and the PTO drive enables speedy work even with larger logs up to 50cm in diameter. Including three-way control valve set, PARKER pump & hydraulic motor.

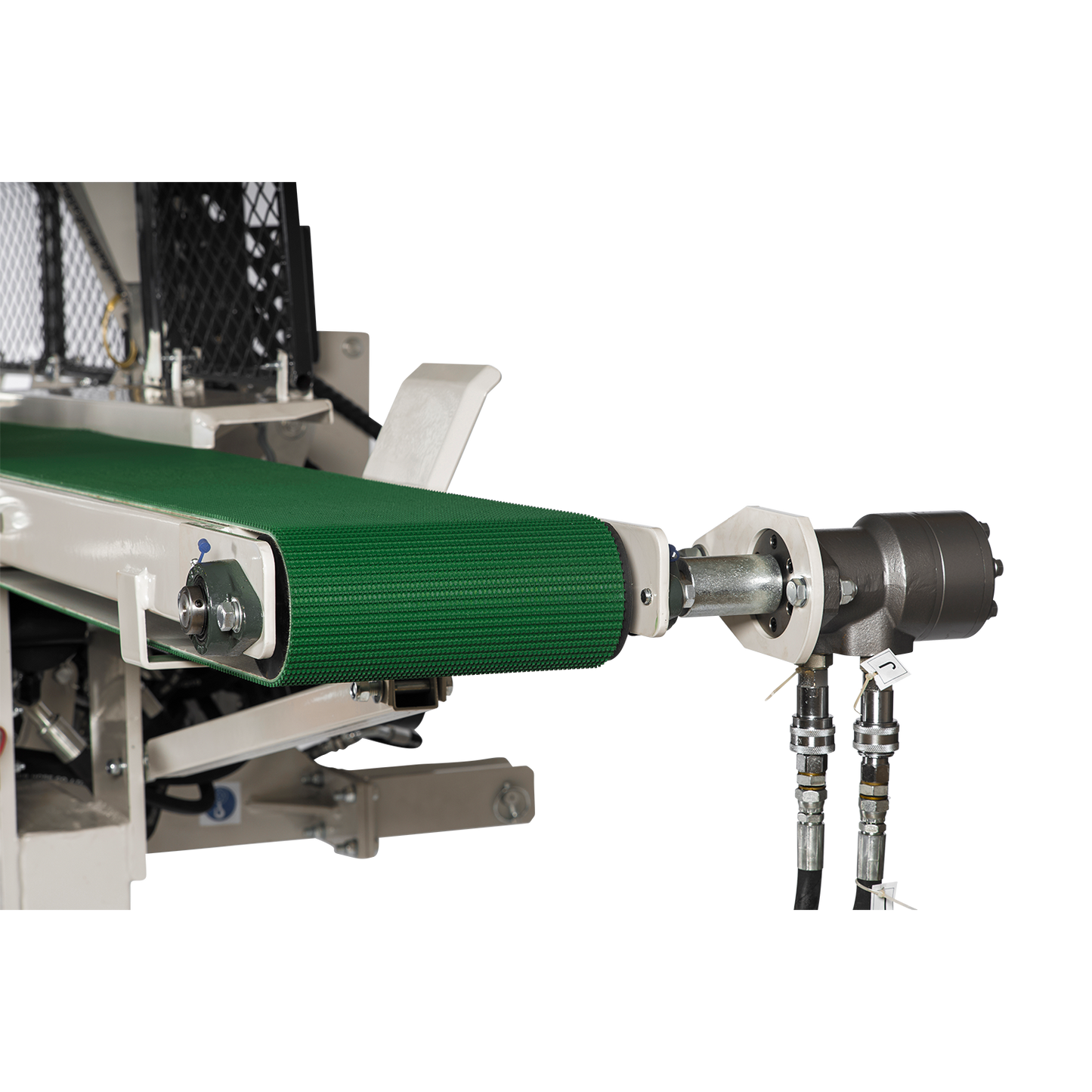

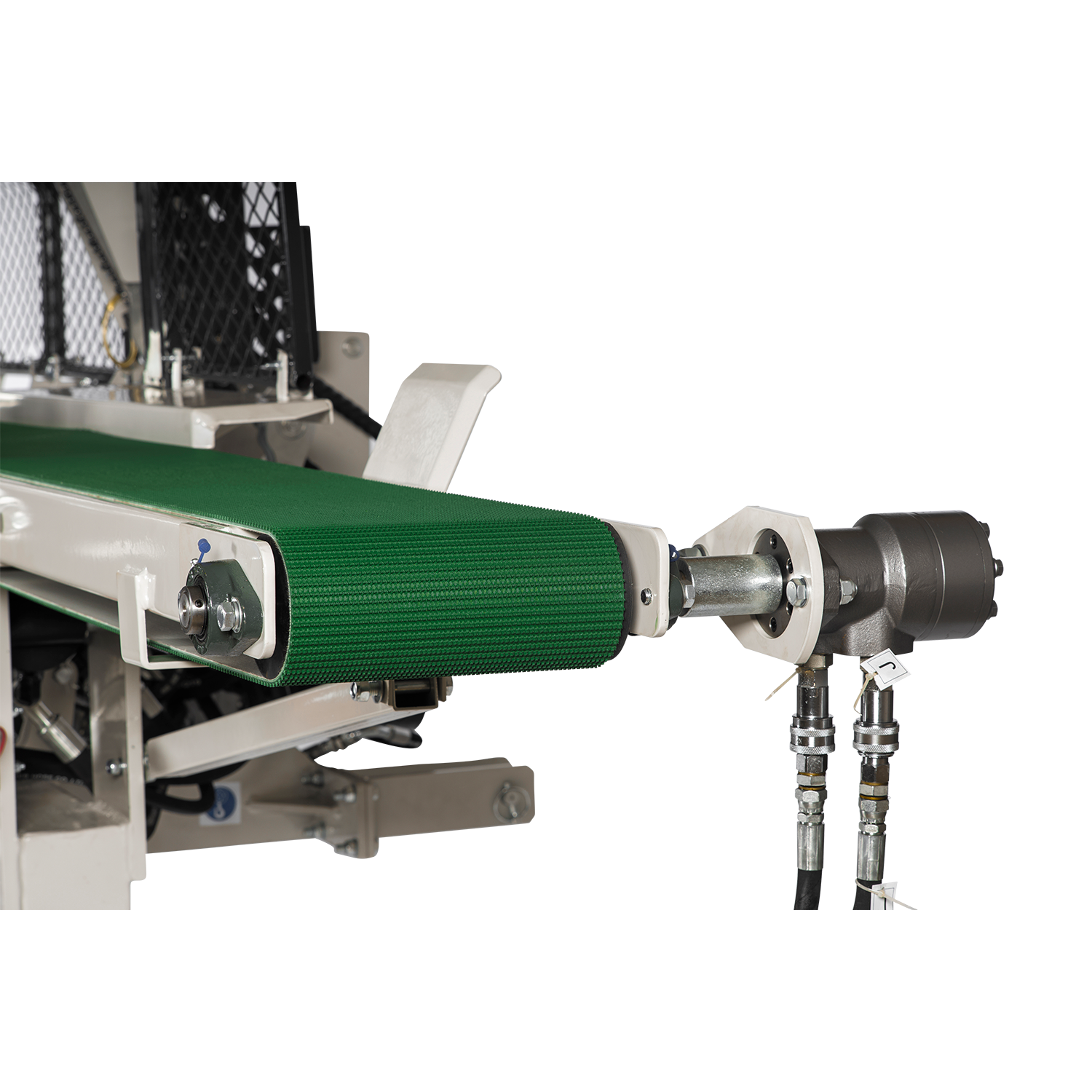

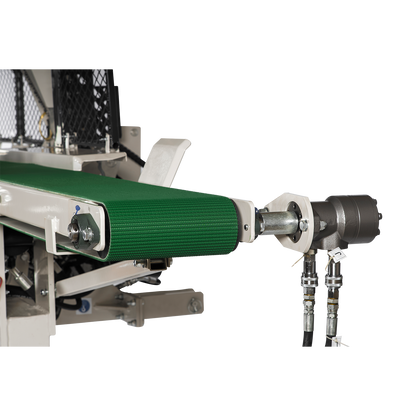

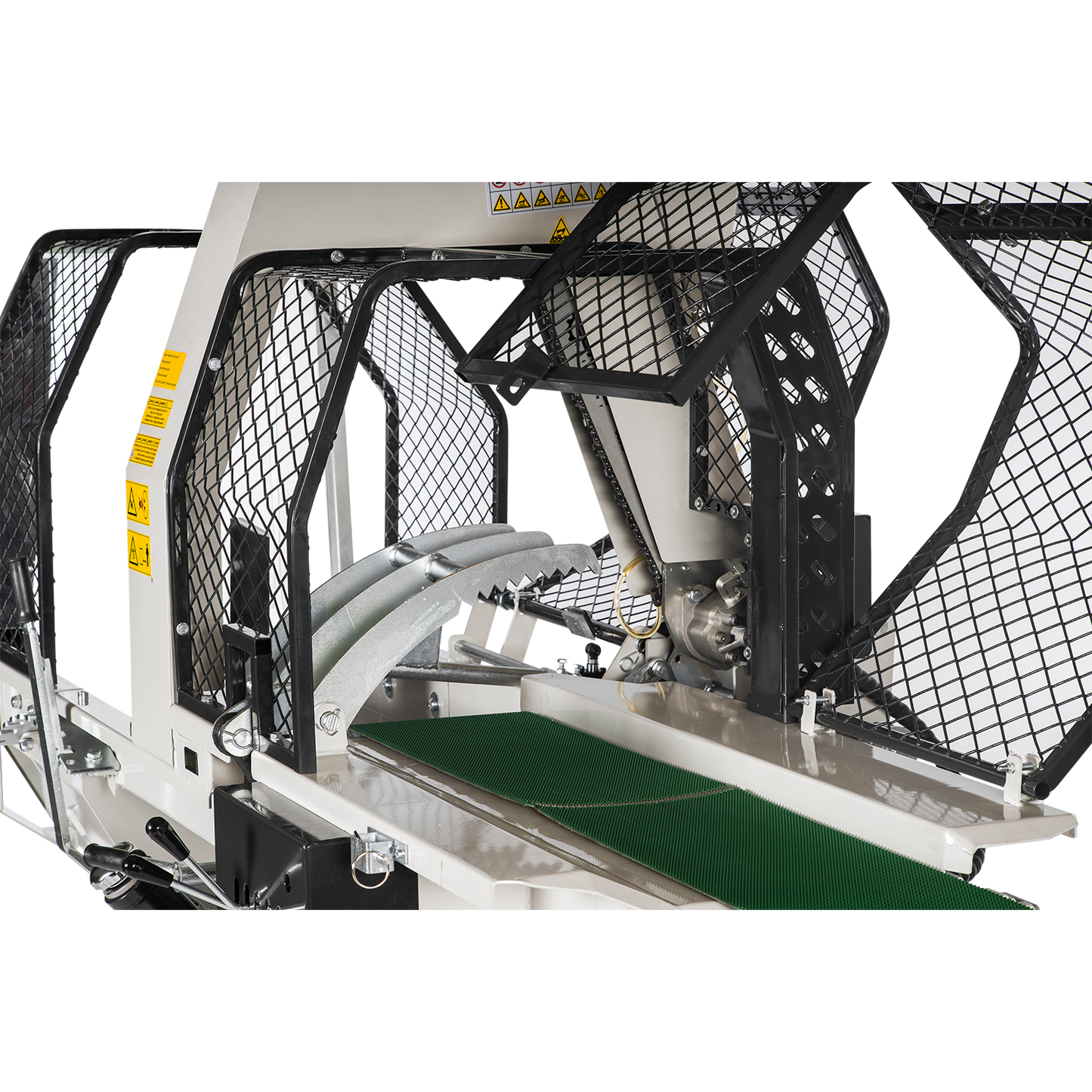

Belt FEED FOR SMOOTH AND SAFE OPERATION
This one uses a wide belt for feeding, which provides steady and reliable handling of logs up to 50 cm in diameter.
FEATURES THAT MAKE THIS ONE BETTER
Efficient belt feed with wide belt for safe handling of heavy logs.
Central lubrication for minimal maintenance and maximum service life.

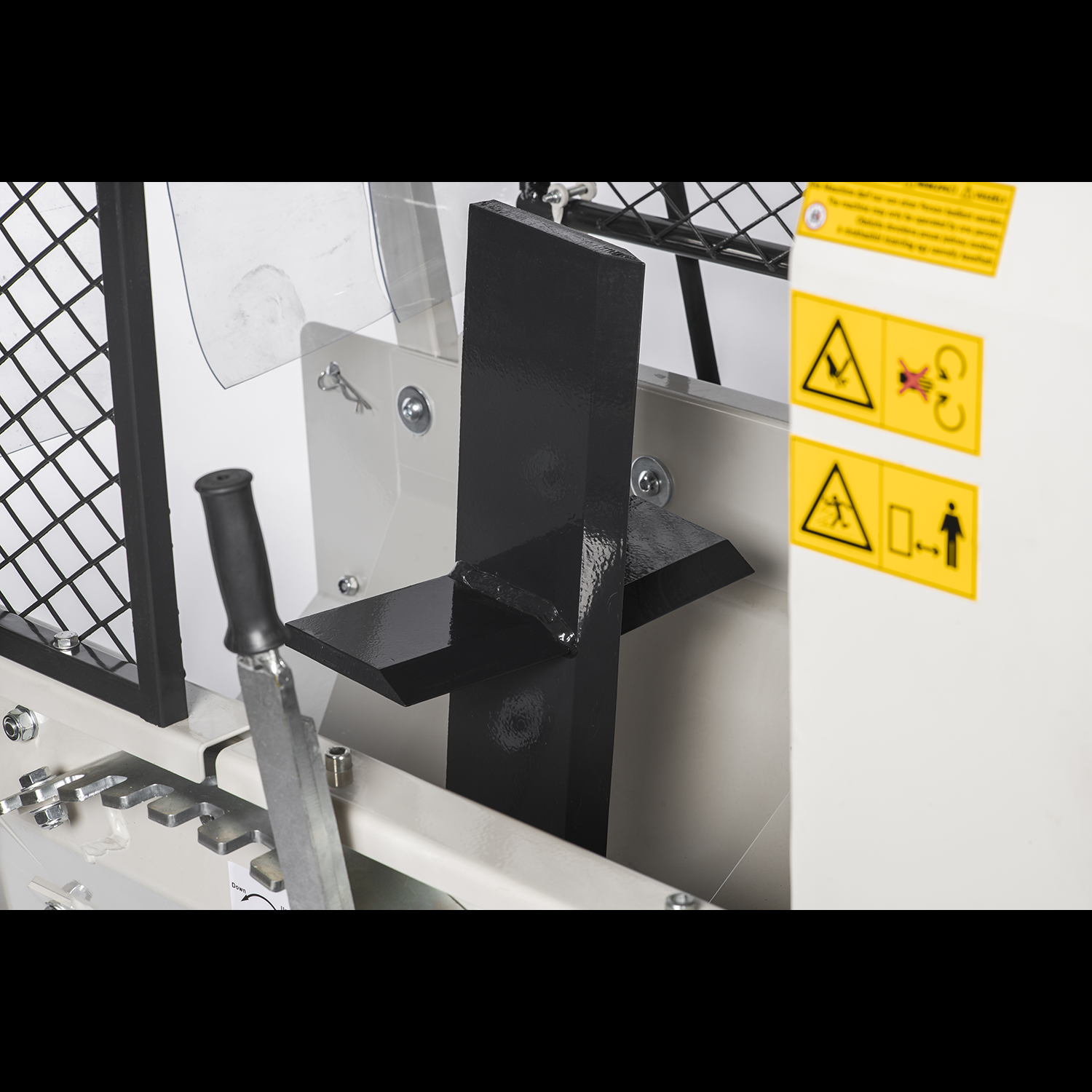

Hydraulically adjustable splitting knife for flexible adaptation to different wood sizes.
Fast cycle time that significantly streamlines the entire wood production process.
Hydraulic conveyor belt (3.2m) for automatic removal of finished split wood.

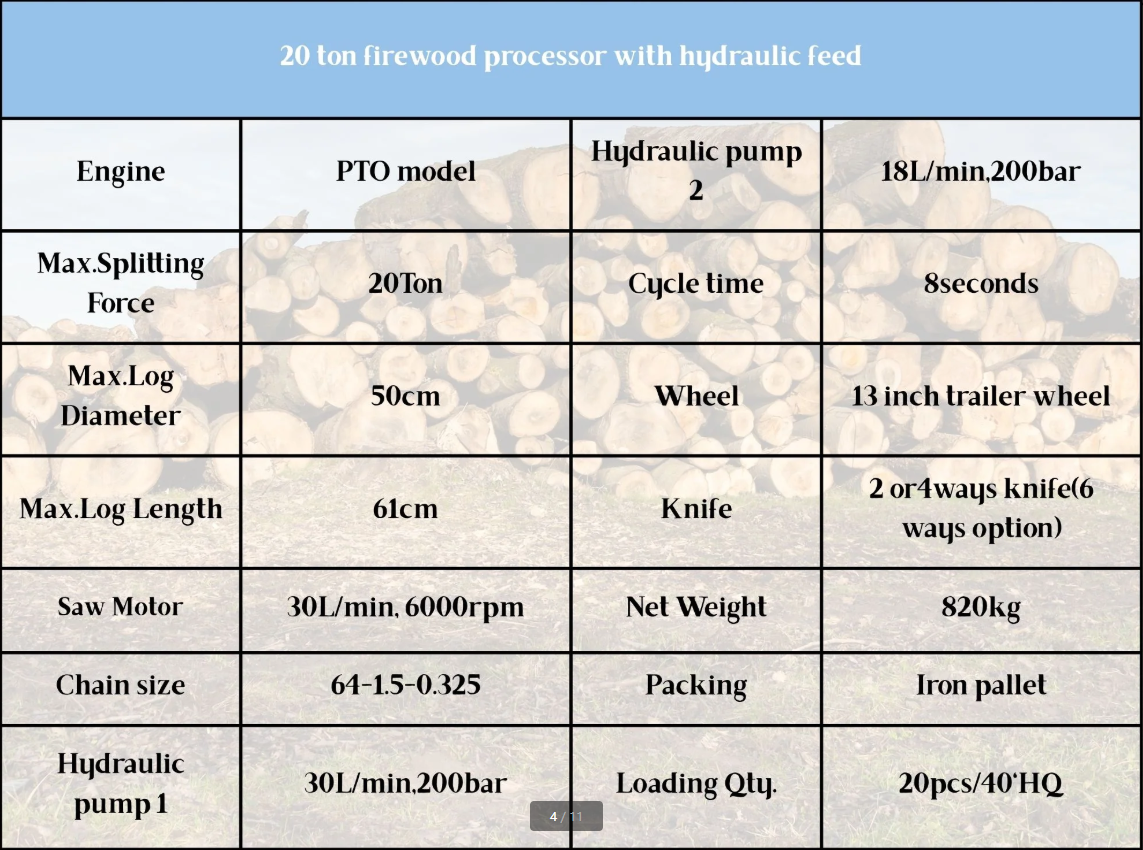

TECHNICAL SPECIFICATIONS
Engine: PTO Driven(optional)
Max.Splitting Force: 20Ton
Max.Log Dia.: 50cm
Max.Log Length: 61cm

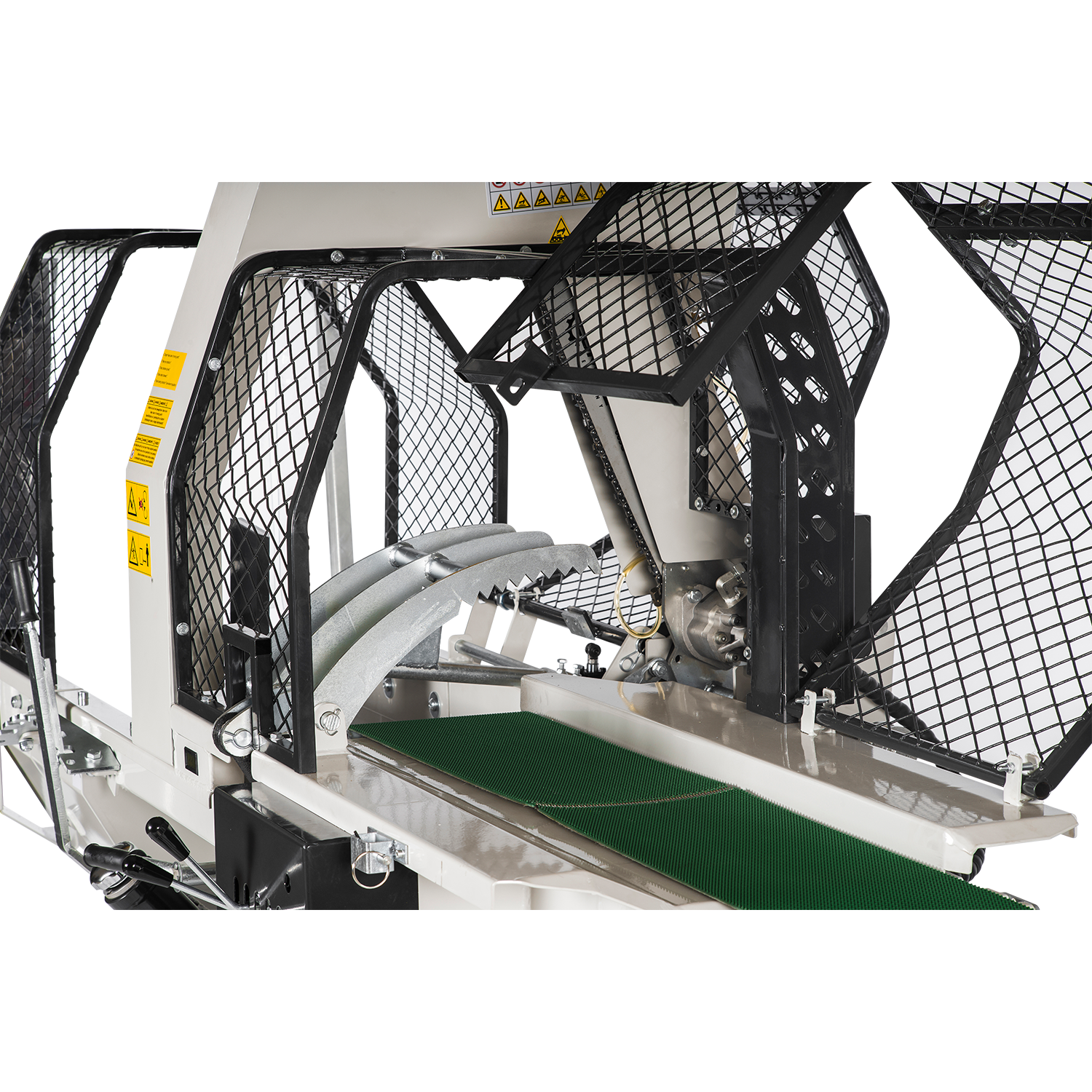

Chainsaw: Hydraulic driven with mechanical lubrication system
Conveyor: 3.2 meter length
Conveyor belt: 3200 x 250 mm, speed 0.7 m/s
Cycle Time: 8 seconds
Knife: 4ways or 6ways knife
Wheel: 13inch trailer wheel
Net Weight: 820kgs
Packing: iron pallet
UNBEATABLE VALUE FOR MONEY
This makes it an excellent choice for:
- Private forest owners with a need for efficient wood production
- Smaller farms with limited budgets but high demands on functionality
- Holiday home owners who want a reliable and powerful wood processor without overinvesting
The fully hydraulic wood processor that gives the most value for money
