Introduction

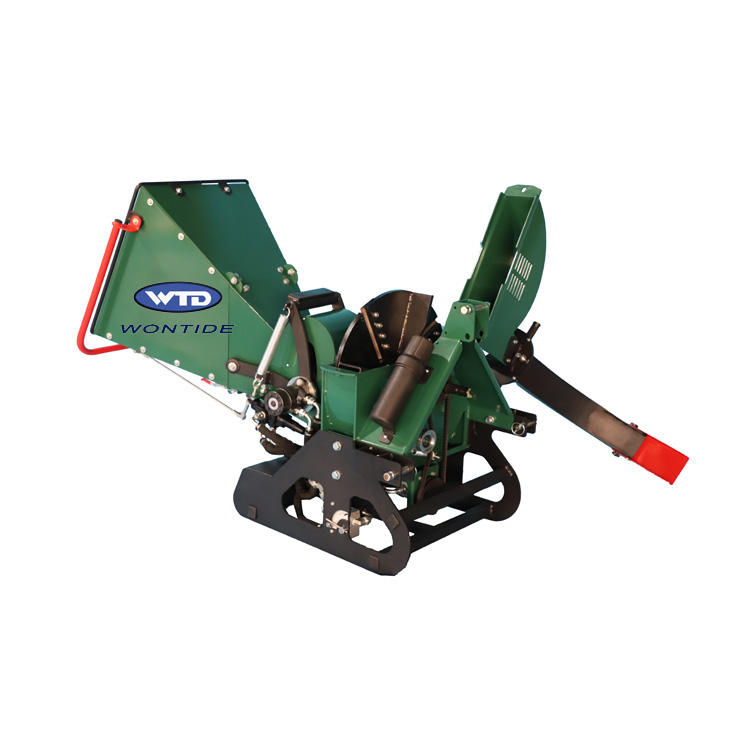

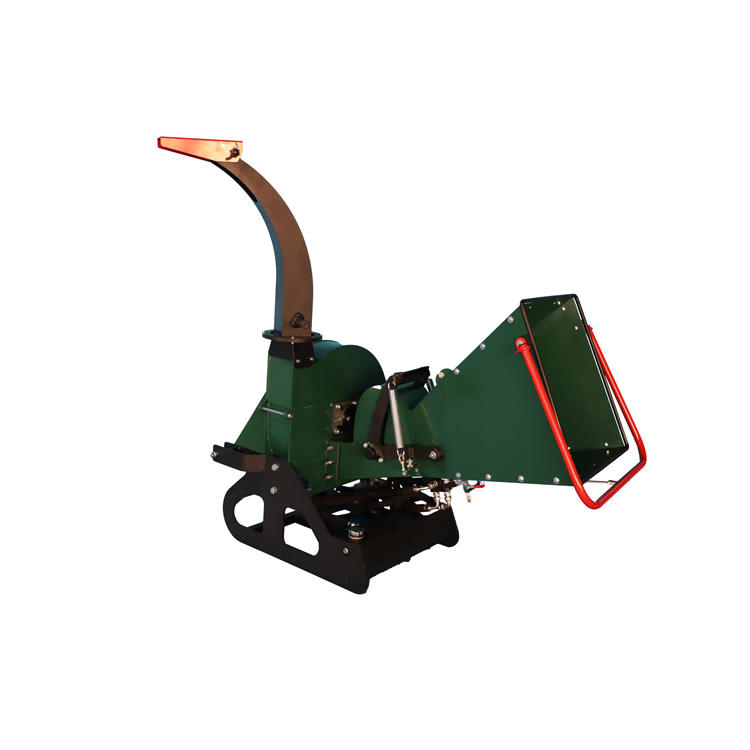

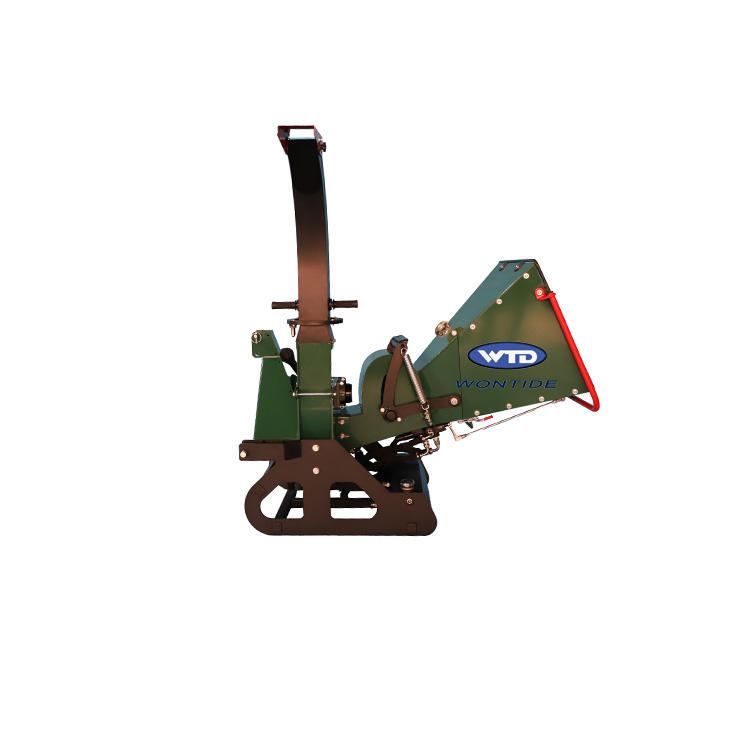

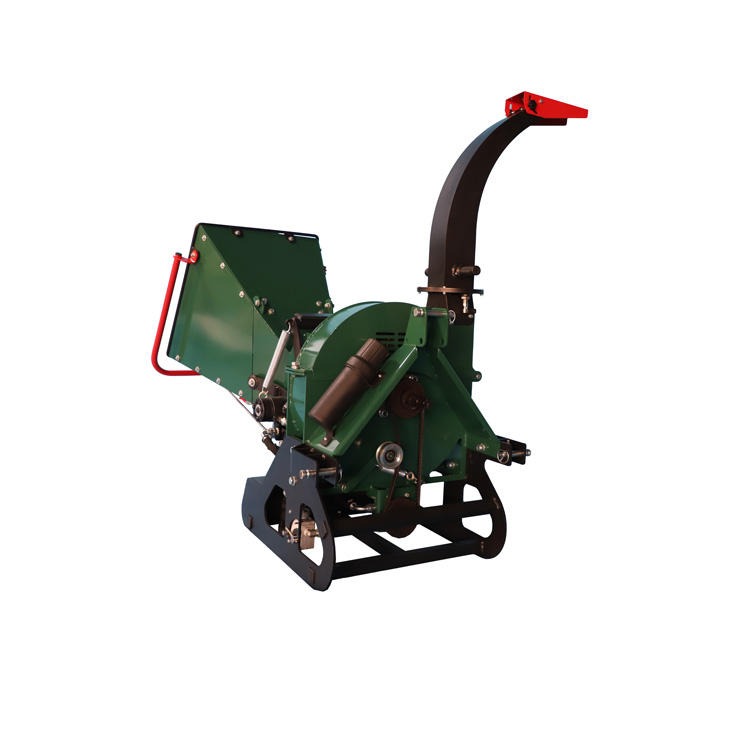

The WTD - 88WC Wood Chipper is a high - performance machine designed for efficient wood chipping tasks.

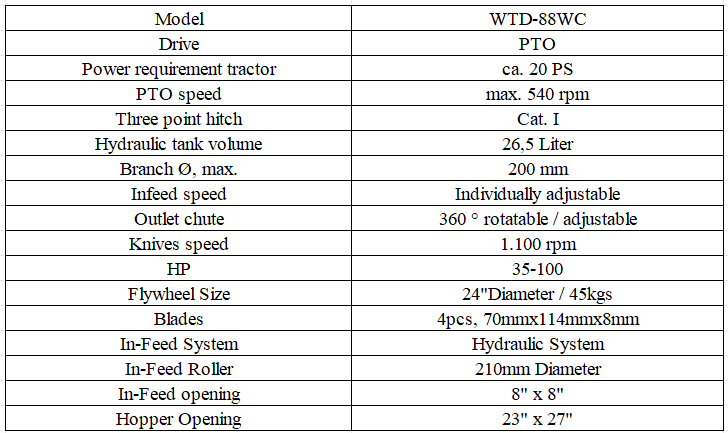

Key Features and Specifications:
- Model: WTD - 88WC, driven by PTO (Power Take - Off), which ensures reliable power transmission.
- Tractor Requirements: It requires a tractor with approximately 20 PS power and is compatible with a Cat. I three - point hitch, making it easy to attach to suitable tractors. The PTO speed can reach a maximum of 540 rpm.
- Hydraulic System: The hydraulic tank has a volume of 26.5 liters. The in - feed system is hydraulic, featuring an in - feed roller with a diameter of 210mm. The in - feed speed is individually adjustable, allowing for flexible operation based on different wood materials. The in - feed opening measures 8" x 8", and the hopper opening is 23" x 27", enabling convenient feeding of various sizes of wood.
- Chipping Performance: With knives running at 1,100 rpm and equipped with 4 blades (each 70mm x 114mm x 8mm), it can handle wood chipping tasks with an HP range of 35 - 100. The branch capacity reaches a maximum of 200mm. The outlet chute is 360° rotatable and adjustable, facilitating the direction of chips as needed. A flywheel with a 24" diameter and weighing 45kgs helps maintain smooth operation.
This wood chipper is ideal for forestry, landscaping, and other applications where efficient wood chipping is required, combining durability and versatility for optimal performance.
