Introduction

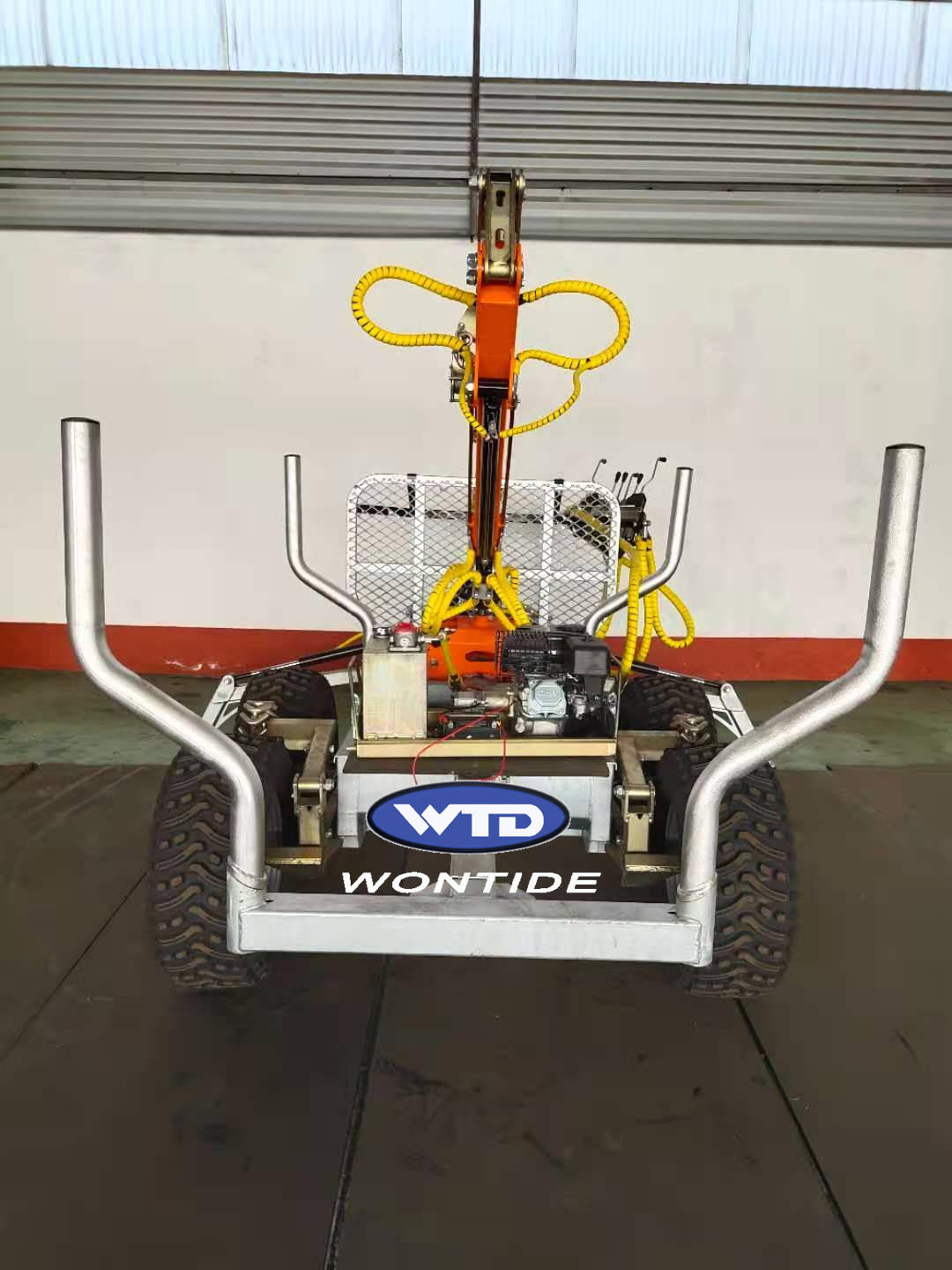

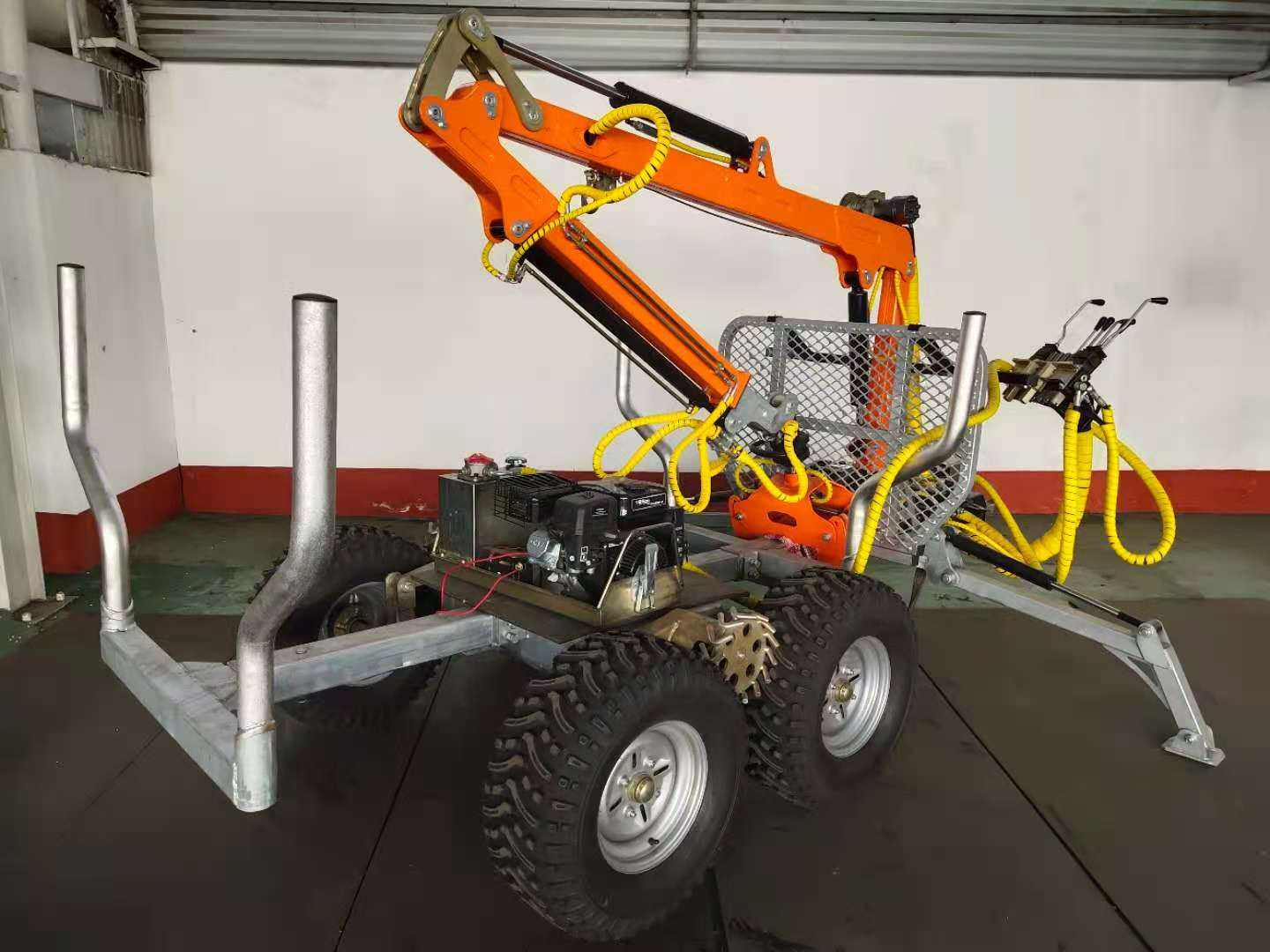

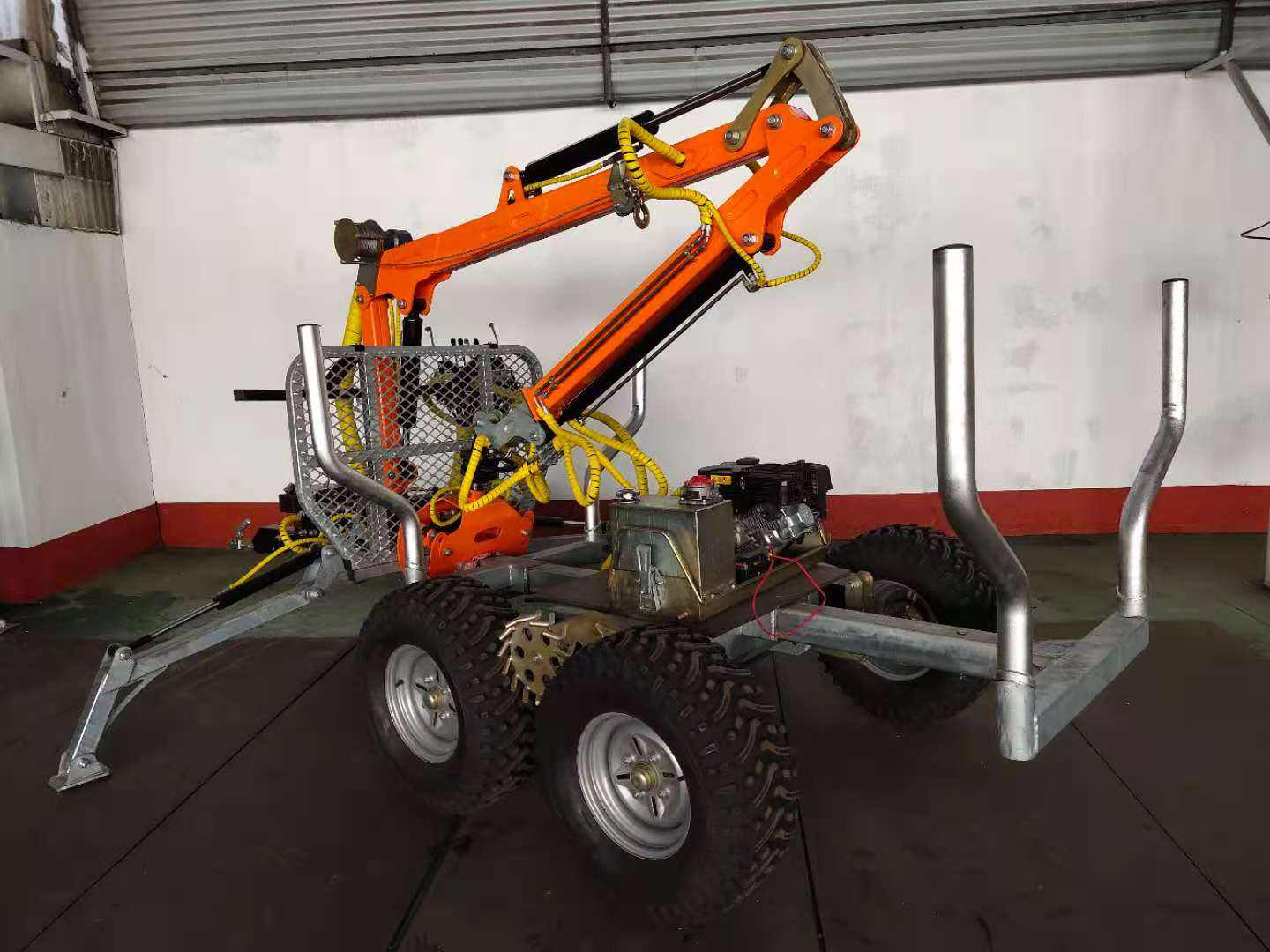

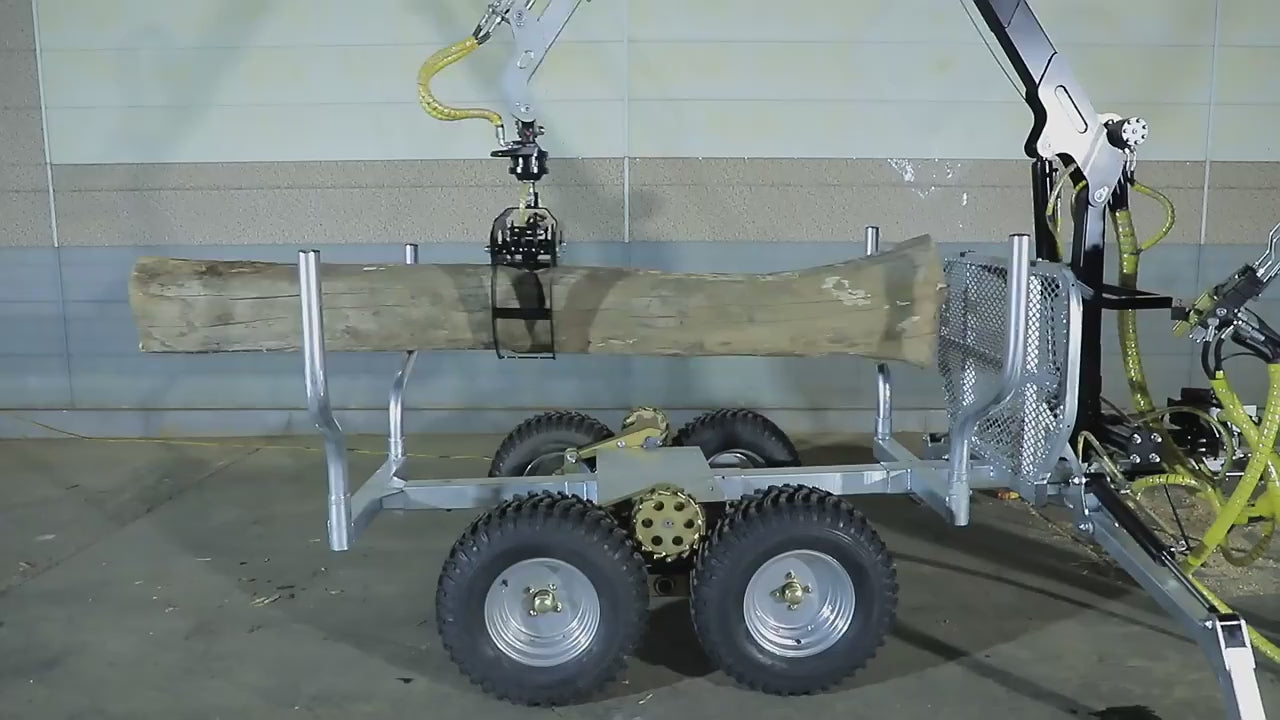

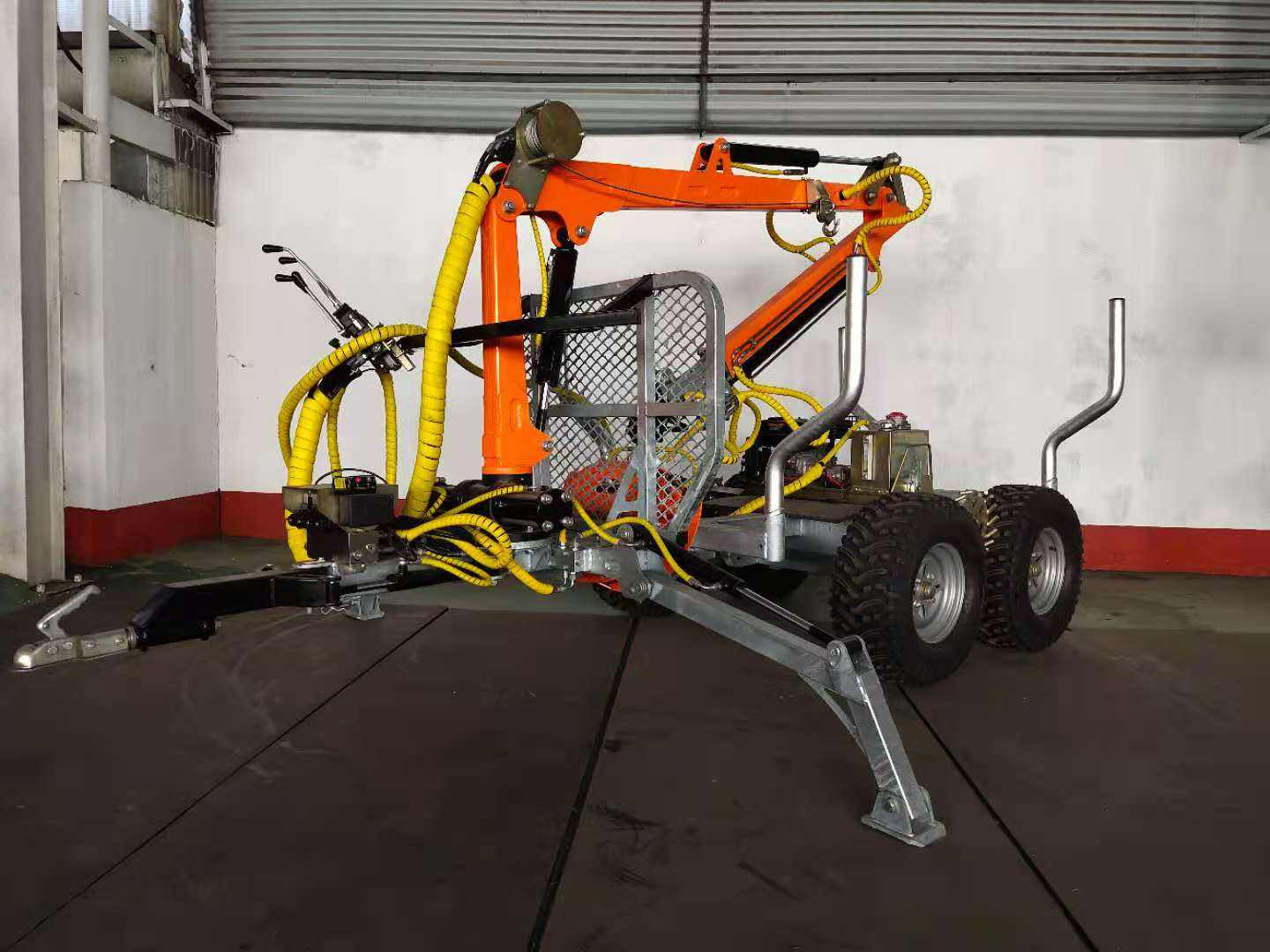

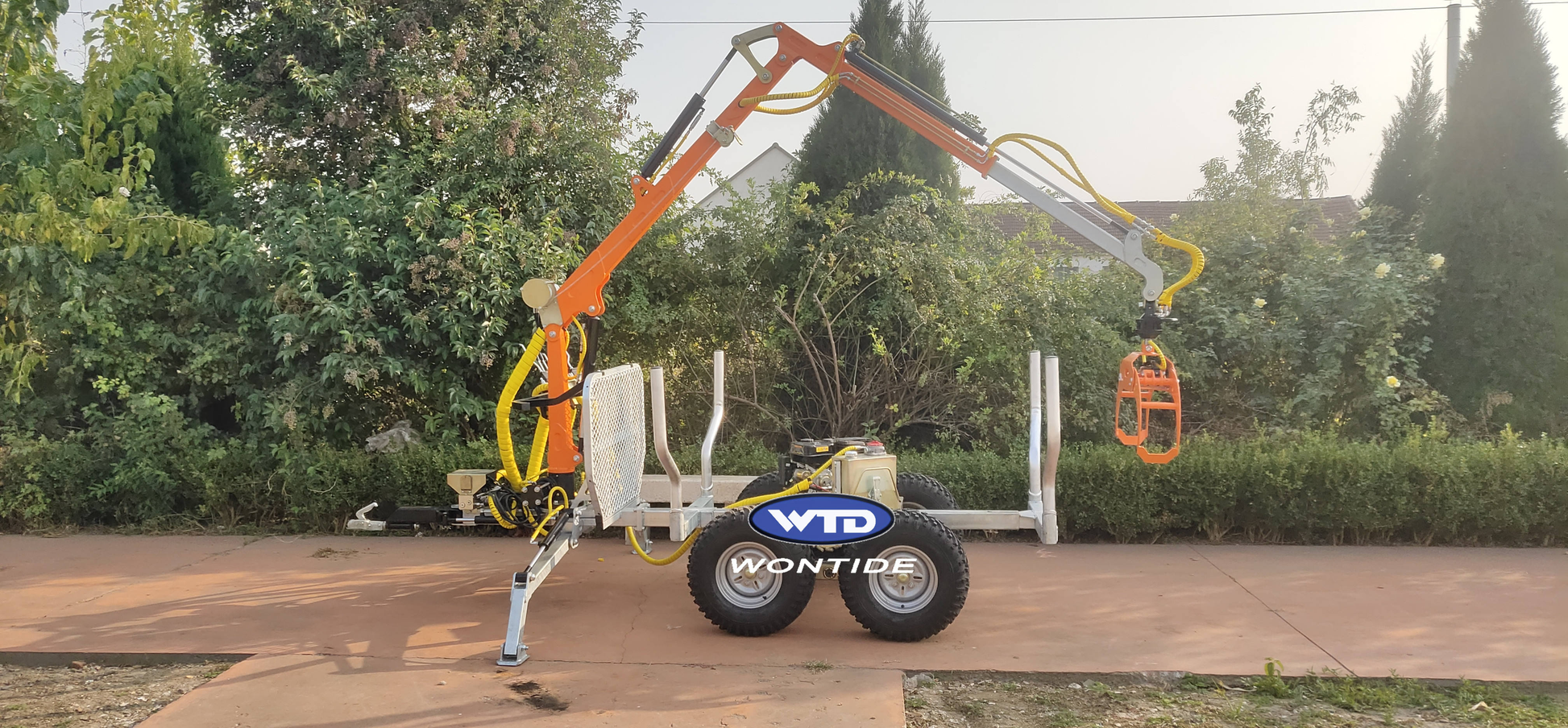

This log trailer is a high-performance engineering equipment designed for multi-scenario log transportation and lifting operations, with key features:

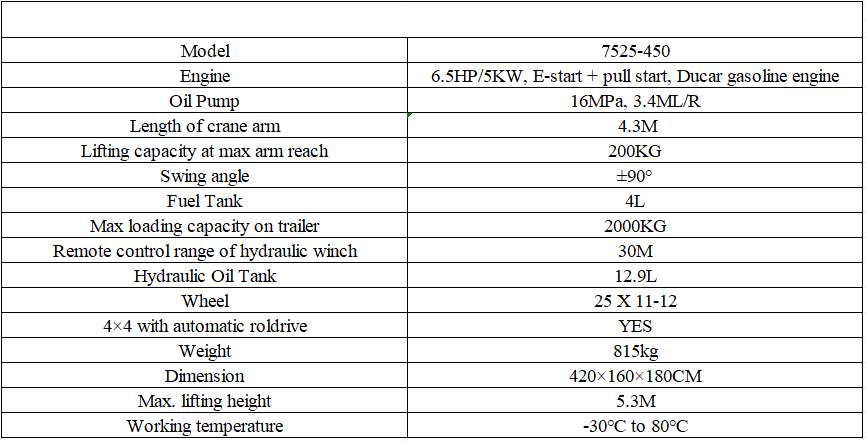

- Power & Drive: Equipped with a 6.5HP (5KW) Ducar gasoline engine (E-start + pull start), paired with a 16MPa, 3.4L/R oil pump for strong and stable power output. It adopts a 4×4 automatic roldrive system and 25×11-12 wheels, ensuring excellent passability.
- Lifting & Loading: The 4.3M crane arm offers a 200KG lifting capacity at max reach and a 5.3M max lifting height, combined with a ±90° swing angle for flexible and efficient operation. The trailer supports a max loading capacity of 2000KG, meeting heavy-load transportation needs.
- Configurations & Specs: The hydraulic winch has a 30M remote control range; it comes with a 4L fuel tank and 12.9L hydraulic oil tank. The unit weighs 815kg with dimensions of 420×160×180CM, operating in temperatures from -30℃ to 80℃, and the container loading quantity is 12/24 units.
- Warranty: 1-year product warranty is provided for worry-free use.
