Introduction

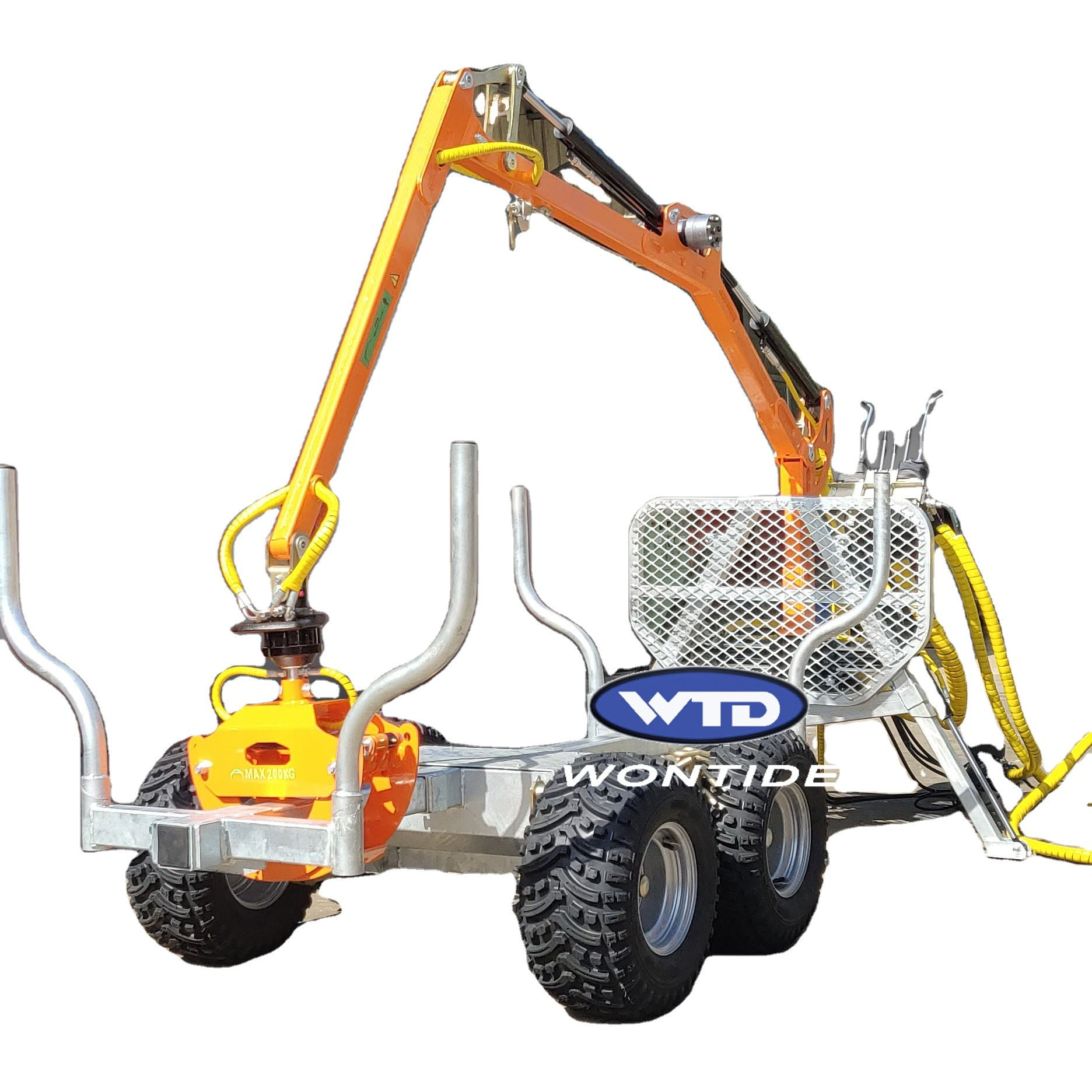

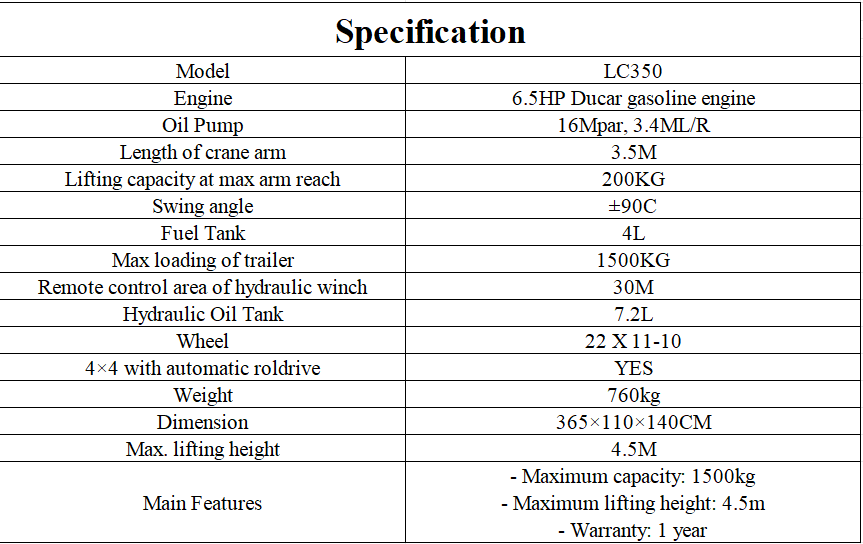

This log trailer is a reliable small-scale engineering equipment with key specifications:

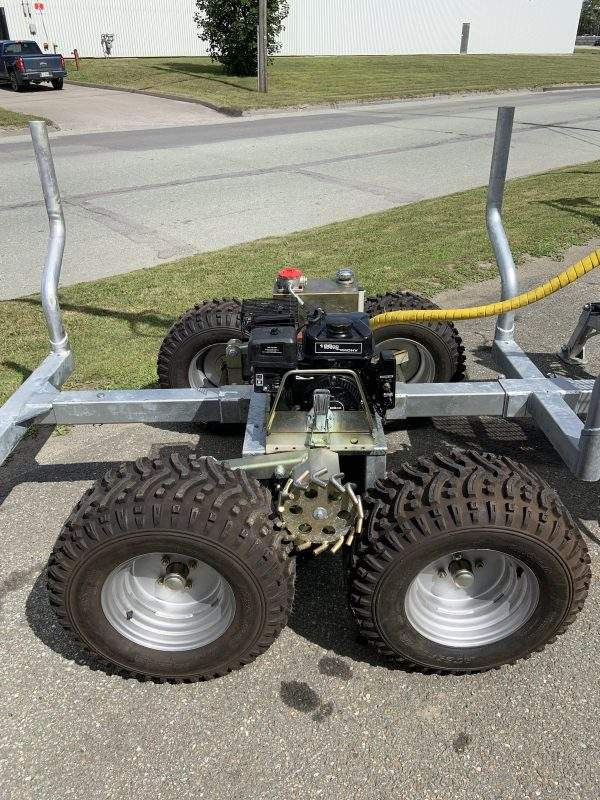

- Power System: Equipped with a 6.5HP Ducar gasoline engine, paired with a 16MPa, 3.4L/R oil pump for stable and efficient power output.
- Lifting Performance: The crane arm measures 3.5M in length, with a 200KG lifting capacity at max arm reach and a 4.5M max lifting height. It also features a ±90° swing angle for flexible operation in various scenarios.
- Loading & Mobility: The trailer supports a max loading of 1500KG, uses 22×11-10 wheels, and comes with 4×4 automatic roldrive for strong load-bearing and passability.
- Supporting Configurations: The hydraulic winch has a 30M remote control range; it is equipped with a 4L fuel tank and 7.2L hydraulic oil tank. The unit weighs 760kg and has dimensions of 365×110×140CM, with a compact design for easy transportation and operation.
